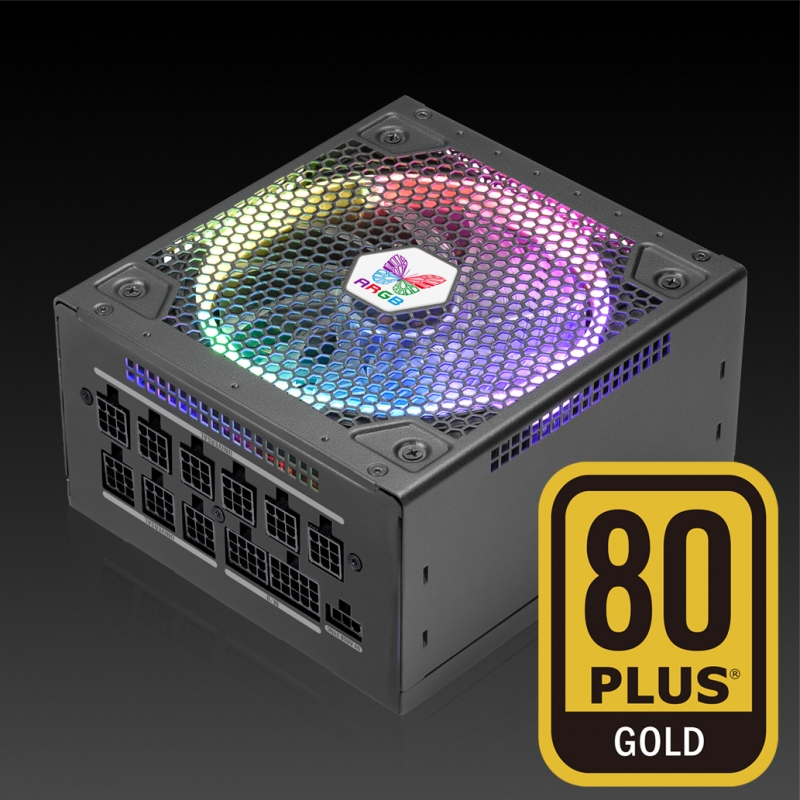

Products Name : LEADEX III Gold ARGB PRO 650W
Features
LEADEX III Gold ARGB Pro series, which are based on LEADEX III platform, features RGB lighting. The Led RGB light possesses 16 light modes such as, Rainbow mode, Breathing mode, Blink mode, and single color mode etc..which can be controlled manually through the button.
The ARGB PSU could also be controlled through the motherboard from ASUS, Gigabyte or MSI with a 5V RGB header. LEADEX III Gold ARGB Pro series PSU provides high efficiency & stable power output and come with a 13cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
New LEADEX III ARGB Pro series possess our patents with additional 9-pin universal patent connectors which we called it Super Connector.The Super Connector allows end-users to plug CPU / PCI-E / Peripherals in any of the 9 pin sockets which are more flexible while building the system. The whole cable set is flat ribbon which fits into the current trend.
The ARGB PSU could also be controlled through the motherboard from ASUS, Gigabyte or MSI with a 5V RGB header. LEADEX III Gold ARGB Pro series PSU provides high efficiency & stable power output and come with a 13cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
New LEADEX III ARGB Pro series possess our patents with additional 9-pin universal patent connectors which we called it Super Connector.The Super Connector allows end-users to plug CPU / PCI-E / Peripherals in any of the 9 pin sockets which are more flexible while building the system. The whole cable set is flat ribbon which fits into the current trend.
♦ 100% Super Fully Modular Cabling Design For Easy Cable Management
♦ The RGB lighting effects can be SYNC through the M/B which supports ARGB function, including ASUS AURA/MSI Mystic Light/Gigabyte Fusion/Asrock Polychrome series..png)
♦ The RGB lighting effects can be SYNC through the M/B which supports ARGB function, including ASUS AURA/MSI Mystic Light/Gigabyte Fusion/Asrock Polychrome series.
♦ Software controlled through 5V connector, LEADEX III ARGB PRO series provide more colorful mode options
♦ Highly efficient 5VSB rail
♦ Excellent ripple suppression
♦ Class leading Single +12V powerful output
♦ Fully modular design
♦ Highly efficient 5VSB rail
♦ Excellent ripple suppression
♦ Class leading Single +12V powerful output
♦ Fully modular design
- Offering flexible options for cable management
- Increasing PSU efficiency with decreasing voltage consumption
- Patented Easy To Use & Install 3x3 Grid Connectors
♦ 16 optional button control lighting modes
♦ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards(Haswell ready)
♦ Compatible with Intel's 11, 12th Generation
♦ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
♦ Comply With ATX 12V. v2.52 & EPS 12V. v2.92 Specification
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ 80 PLUS ® Gold Certified for LEADEX III Gold ARGB PRO Series
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦ Multi-Patented techniques
1. ECO thermal fan control system: Semi-Passive mode
2. 130mm FDB fan
- Unique 11 blades design ensure high airflow and more stable cooling system
- Patented Circle Led lighting offers more smooth lighting
3. Patented Lighting Design: Self-detect ARGB SYNC or Manual Mode options
4. +3.3V /+5V /12V output stable design
5. New patented technology of (20+4) Pin connector
6. Dual Over Power Protection ensure more complete protection and ultimate safety for end-users
7. Multi-Patent Pending Extreme High Efficiency Main Transformer
♦ Solid capacitors using on DC output for stable reliability
♦ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel) ensure high stability and life span.
♦ Over Voltage Protection / Over Current Protection / Dual Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection.
♦ More than 2,000 times On/Off test
♦ Lead-free Green Materials with RoHS / WEEE Compliance
♦ Perfect For Professional & High Performance Gaming System
♦ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards(Haswell ready)
♦ Compatible with Intel's 11, 12th Generation
♦ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
♦ Comply With ATX 12V. v2.52 & EPS 12V. v2.92 Specification
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ 80 PLUS ® Gold Certified for LEADEX III Gold ARGB PRO Series
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦ Multi-Patented techniques
1. ECO thermal fan control system: Semi-Passive mode
2. 130mm FDB fan
- Unique 11 blades design ensure high airflow and more stable cooling system
- Patented Circle Led lighting offers more smooth lighting
3. Patented Lighting Design: Self-detect ARGB SYNC or Manual Mode options
4. +3.3V /+5V /12V output stable design
5. New patented technology of (20+4) Pin connector
6. Dual Over Power Protection ensure more complete protection and ultimate safety for end-users
7. Multi-Patent Pending Extreme High Efficiency Main Transformer
♦ Solid capacitors using on DC output for stable reliability
♦ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel) ensure high stability and life span.
♦ Over Voltage Protection / Over Current Protection / Dual Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection.
♦ More than 2,000 times On/Off test
♦ Lead-free Green Materials with RoHS / WEEE Compliance
♦ Perfect For Professional & High Performance Gaming System
Specification
| Model No. | SF-650F14RG V2.0 | |
| Wattage | 650W | |
| 80+ Efficiency | 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) | |
| Intel Power Design Guide | V2.92 | |
| AC Input / Frequency | 100V~240V | 60 / 50HZ | |
| Fan Size | 130mm F.D.B Fan (RGB) | |
| Dimension | 160mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OVP / OCP / Dual OPP / SCP / UVP / OTP / NLO / SIP | |
| Safety | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS/ KCC /CCC | |
| Temperature | Passed 50℃ Hot Testing | |
| Cable Spec | ||
| 20+4 Pin | Full Modular | 1 (600mm) |
| 8 (4+4) Pin CPU | 2 (700mm) | |
| SLI (2 x PCI 6+2 Pin) | 2 (550+150mm) | |
| 4SATA | 2 (550+130+130+130mm) | |
| 4Molex | 1 (550+150+150+150mm) | |
| SF-650F14RG V2.0 | ||||||
| 650W | AC INPUT | 100V-240V~ 10A 60Hz/50Hz | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| Max output Current | 20A | 20A | 54.1A | 0.5A | 3.0A | |
| Max combined Wattage | 100W | 649.2W | 6W | 15W | ||
| 650W | ||||||
