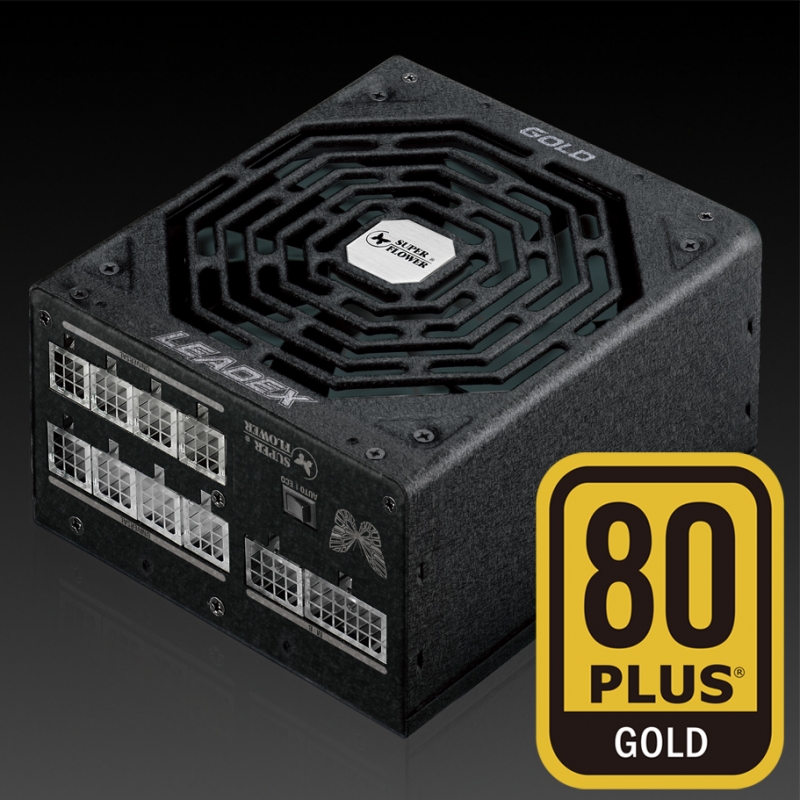

Products Name : LEADEX Gold 750W
Features
LEADEX Gold series PSU are 80+ Gold certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 13.5cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦100% Full Modular Cabling Design For Easy Cable Management
♦80 PLUS ® Gold Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load
♦Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
♦Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection
♦Support All Intel /AMD Multi-Core CPU & ATX /BTX Compatible Motherboards
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card

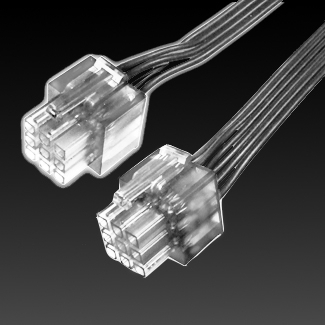

♦Patented Easy To Use & Install Crystal Clear Cube Connectors with LED
♦More than 2,000 times On/Off test
♦Unleaded Green Materials with RoHS/WEEE Compliance
♦Perfect For Professional & High Performance Gaming System
♦Exclusive Patents (Taiwan & China Patents Approved, USA, Germany & Japan Patents Pending)
1. ECO Intelligent Thermal Control System
2. High Power Vertical Double Layer Main Transformer
(China Patent NO.:ZL2009 2 0273193.2 ; Taiwan Patent NO.:M381155)
LEADEX series PSU provides high efficiency & stable power output and come with a 13.5cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦100% Full Modular Cabling Design For Easy Cable Management
♦80 PLUS ® Gold Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load
♦Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
♦Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection
♦Support All Intel /AMD Multi-Core CPU & ATX /BTX Compatible Motherboards
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦Patented Easy To Use & Install Crystal Clear Cube Connectors with LED
♦More than 2,000 times On/Off test
♦Unleaded Green Materials with RoHS/WEEE Compliance
♦Perfect For Professional & High Performance Gaming System
♦Exclusive Patents (Taiwan & China Patents Approved, USA, Germany & Japan Patents Pending)
1. ECO Intelligent Thermal Control System
2. High Power Vertical Double Layer Main Transformer
(China Patent NO.:ZL2009 2 0273193.2 ; Taiwan Patent NO.:M381155)
Specification
| Model No. | SF-750F14MG | |
| Wattage | 750W | |
| 80+ Efficiency | 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) | |
| Intel Power Design Guide | V2.92 | |
| AC Input | Frequency | 100V~240V | 50 / 60HZ | |
| Fan Size | 135mm F.D.B. Cooling Fan | |
| Dimension | 165mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OVP、OCP、OPP、SCP、UVP | |
| Safety | cTÜVus/ TÜV/ CB/ CE/ FCC/ RCM/ BSMI R33529/ RoHS/ KCC/ CCC | |
| Temprature | Passed 50℃ Hot Testing | |
| Cable Spec | ||
| 20+4Pin | Detachable Cables | one cable(550mm) |
| (4+4Pin) CPU | two cables(650mm) | |

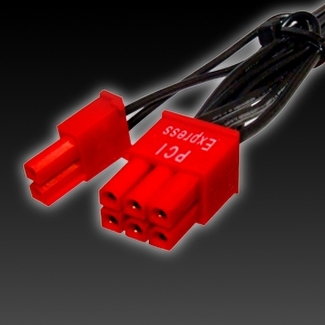

| SLI (2 x PCI 6+2Pin) | two cables(550+150mm) | |
| 4SATA | two cables(500+130+130+130mm) | |
| 2SATA+2Molex | one cable(500+130+130+130mm) | |

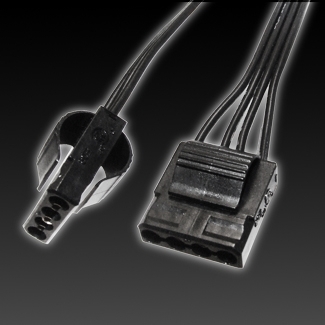

| 3Molex | one cable(500+130+130mm) | |
Overview
| Model no.: SF-750F14MG | ||||||
| AC INPUT | 100Vac~240Vac 10A 60Hz/50Hz | |||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| 750W | Max Output Current | 24A | 24A | 62.4A | 0.5A | 3.0A |
| Max Combined Wattage | 120W | 748.8W | 6W | 15W | ||
| 750W | ||||||
Downloads
Reviews & Awards
- 80 PLUS certification information, please refer to the below link : SF-750F14MG
