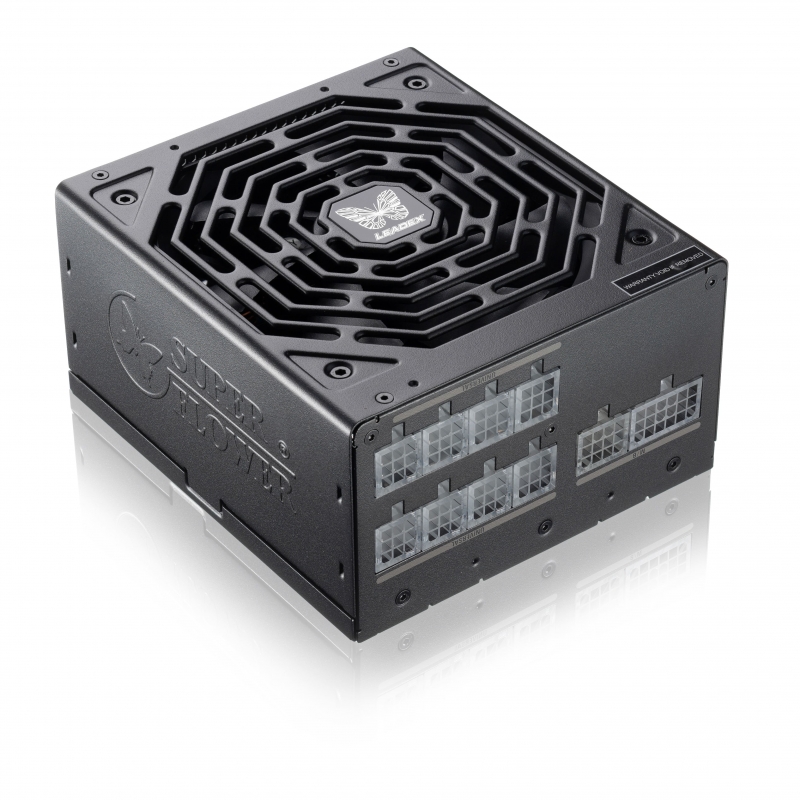

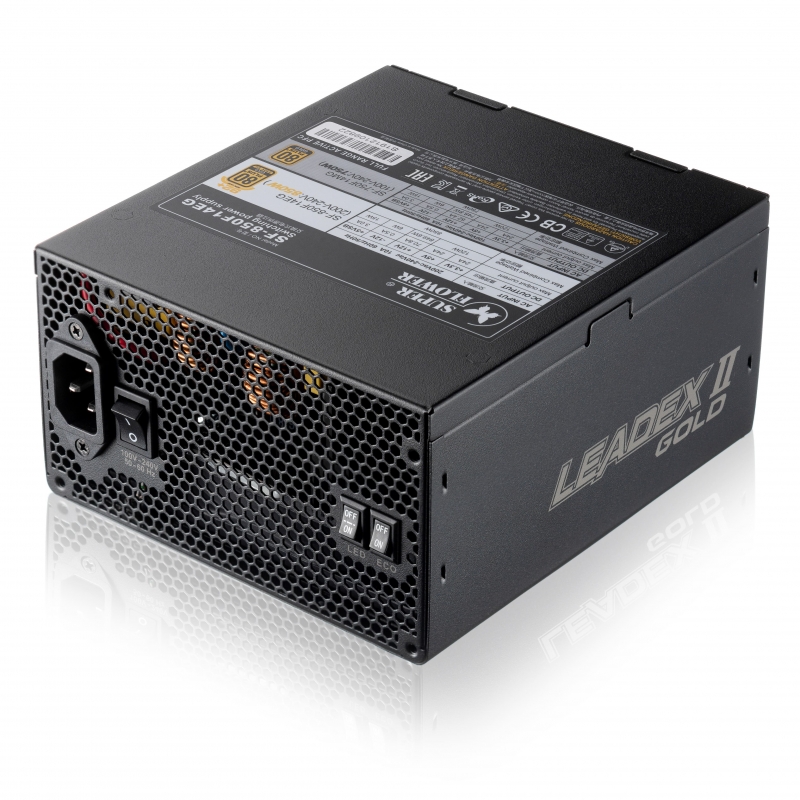

Products Name : LEADEX II Gold 850W
Features
LEADEX II series PSU are 80PLUS 115V & 230V EU dual certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX II series PSU provides high efficiency & stable power output and come with a 13.5cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
LEADEX II series PSU provides high efficiency & stable power output and come with a 13.5cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

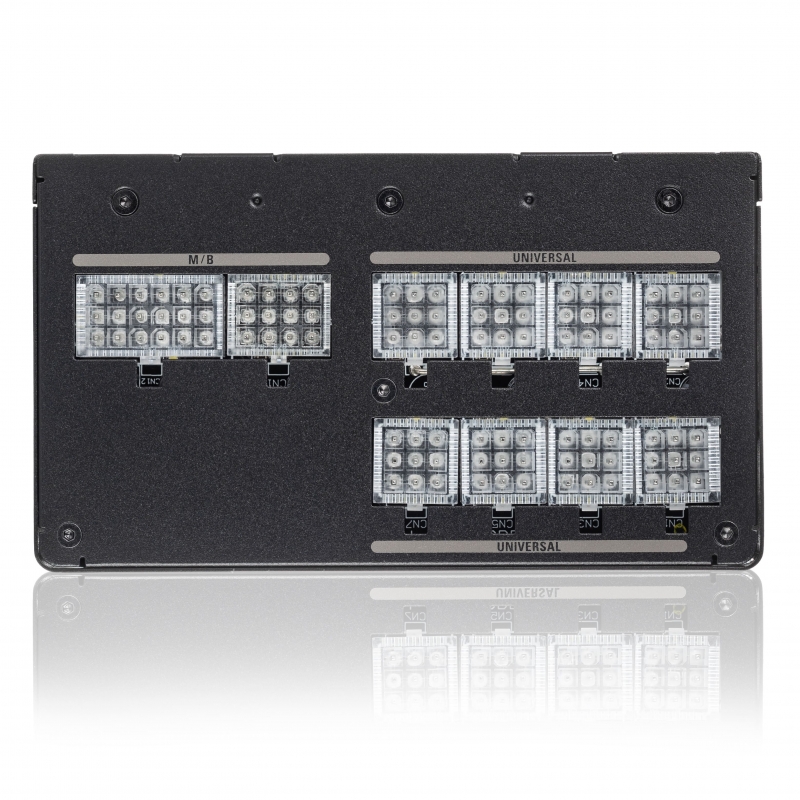

♦ 100% Full Modular Cabling Design For Easy Cable Management
♦ 80 PLUS® 115V & 230V EU Gold Certified
♦ 100% Japanese 105℃ Capacitors (Main Board)
♦ 100% Taiwan A Grade 105℃ Capacitors (Modular Backpanel)
♦ Full Range Auto Voltage Detection Design 115V~240V (Active PFC)
♦ Additional 150W solid and sustainable power output under 230V
♦ Comply With ATX 12V v2.32 & EPS 12V v2.92 Specification
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection
♦ Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards (Haswell ready)
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦ Patented Easy To Use & Install Crystal Clear Cube Connectors with LED On/Off Switch
♦ More than 2,000 times On/Off test
♦ Unleaded Green Materials with RoHS/WEEE Compliance
♦ Perfect For Professional & High Performance Gaming System
♦ Exclusive Patent:ECO Intelligent Thermal Control System.
(China Patent No: ZL 201010622621.5; Taiwan, U.S.A., Germany, Japan Patent Pending)
♦ 80 PLUS® 115V & 230V EU Gold Certified
♦ 100% Japanese 105℃ Capacitors (Main Board)
♦ 100% Taiwan A Grade 105℃ Capacitors (Modular Backpanel)
♦ Full Range Auto Voltage Detection Design 115V~240V (Active PFC)
♦ Additional 150W solid and sustainable power output under 230V
♦ Comply With ATX 12V v2.32 & EPS 12V v2.92 Specification
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection
♦ Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards (Haswell ready)
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦ Patented Easy To Use & Install Crystal Clear Cube Connectors with LED On/Off Switch
♦ More than 2,000 times On/Off test
♦ Unleaded Green Materials with RoHS/WEEE Compliance
♦ Perfect For Professional & High Performance Gaming System
♦ Exclusive Patent:ECO Intelligent Thermal Control System.
(China Patent No: ZL 201010622621.5; Taiwan, U.S.A., Germany, Japan Patent Pending)
Specification
| Model No. | SF-850F14EG | |
| Wattage | 850W | |
| 80+ Efficiency | 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) 20%: 90% ; 50% : 92% ; 100% : 89% (230V Internal Gold) |
|
| Intel Power Design Guide | V2.92 | |
| AC Input | Frequency | 200V~240V | 60 / 60HZ | |
| Fan Size | 135mm F.D.B Fan | |
| Dimension | 165mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OVP / OCP / OPP / SCP / UVP / OTP / LVP | |
| Safety | cTÜVus / TÜV / CB / CE / RCM / RoHS / KCC | |
| Temperature | Passed 50℃ Hot Testing | |

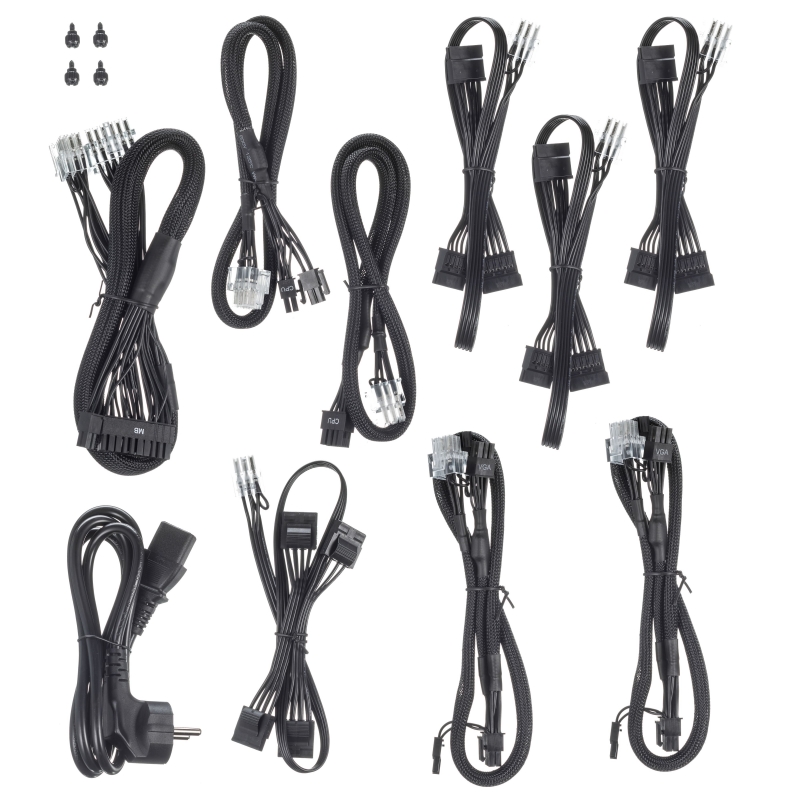

| Cable Spec | ||
| 20+4Pin | Detachable Cables | one cable (550mm) |
| (4+4Pin) CPU | two cables (650mm) | |
| SLI (2 x PCI 6+2Pin) | two cables (550mm+150mm) | |
| 3SATA | three cables (500mm+100mm+100mm) | |
| 4Molex | one cable (500mm+100mm+100mm+100mm) | |
Overview

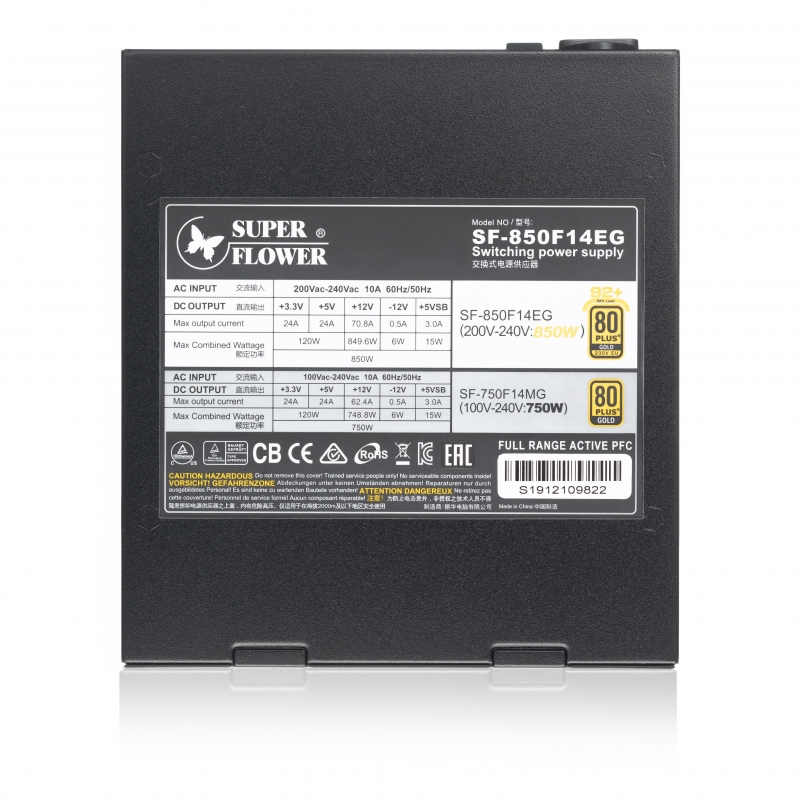

| model no.: SF-850F14EG | ||||||
| 200V~240V: 850W |
AC INPUT | 200Vac~240Vac 10A 60Hz/50Hz | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| Max output Current | 24A | 24A | 70.8A | 0.5A | 3.0A | |
| Max combined Wattage | 120W | 849.6W | 6W | 15W | ||
| 850W | ||||||
| SF-750F14MG | ||||||
| 100V~240V: 750W |
AC INPUT | 100Vac~240Vac 10A 60Hz/50Hz | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| Max output Current | 24A | 24A | 62.4A | 0.5A | 3.0A | |
| Max combined Wattage | 120W | 748.8W | 6W | 15W | ||
| 750W | ||||||
Downloads
Reviews & Awards
- 80 PLUS certification information, please refer to the below link : SF-850F14EG
