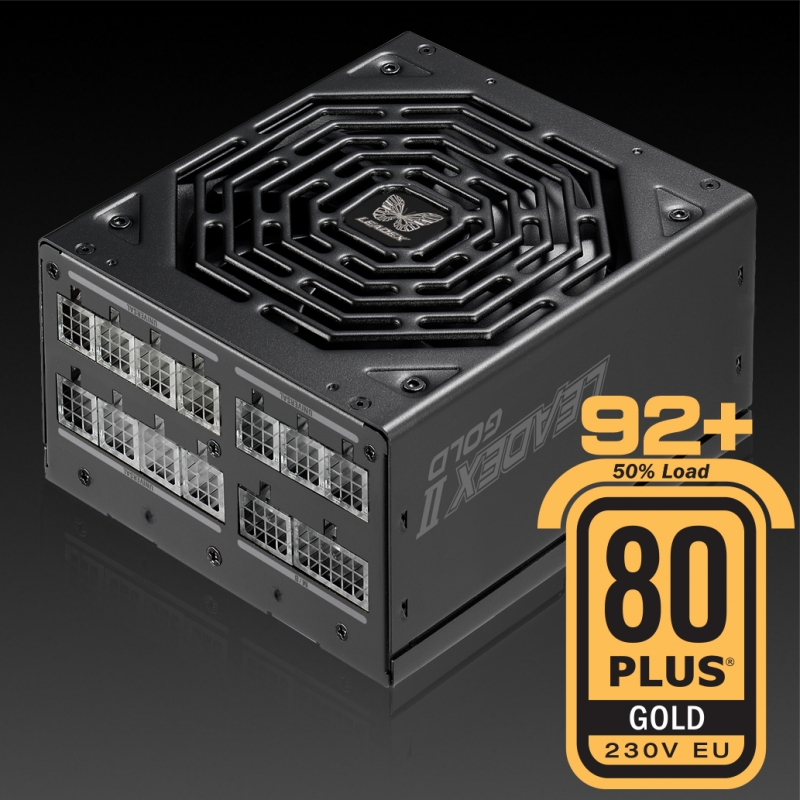

LEADEX II Gold 1000W
Products Name : LEADEX II Gold 1000W
LEADEX II Gold 1000W LEADEX II Gold 1000W LEADEX II Gold 1000W LEADEX II Gold 1000W LEADEX II Gold 1000W LEADEX II Gold 1000W

Features

LEADEX II series PSU are 80PLUS 115V & 230V EU dual certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
Leadex II series PSU provides high efficiency & stable power output and come with a 13.5cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦ 100% Full Modular Cabling Design For Easy Cable Management
♦ 80 PLUS® 115V & 230V EU Gold Certified
♦ 100% Japanese 105℃ Capacitors (Main Board)
♦ 100% Taiwan A Grade 105℃ Capacitors (Modular Backpanel)
♦ Full Range Auto Voltage Detection Design 115V~240V (Active PFC)
♦ Additional 150W solid and sustainable power output under 230V
♦ Comply With ATX 12V v2.32 & EPS 12V v2.92 Specification
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection
♦ Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards (Haswell ready)
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card

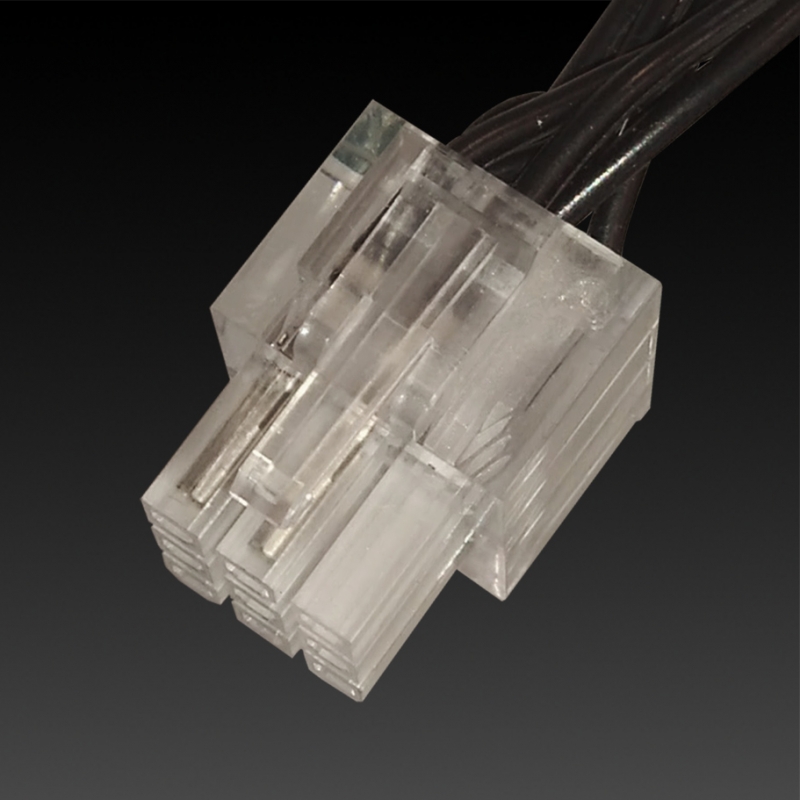

♦ Patented Easy To Use & Install Crystal Clear Cube Connectors with LED On/Off Switch
♦ More than 2,000 times On/Off test
♦ Unleaded Green Materials with RoHS/WEEE Compliance
♦ Perfect For Professional & High Performance Gaming System
♦ Exclusive Patent:ECO Intelligent Thermal Control System.
(China Patent No: ZL 201010622621.5; Taiwan, U.S.A., Germany, Japan Patent Pending)

Specification

Model No. SF-1000F14EG
Wattage 1000W
80+ Efficiency 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold)
20%: 90% ; 50% : 92% ; 100% : 89% (230V Internal Gold)
Intel Power Design Guide V2.92
AC Input | Frequency 200V~240V | 60 / 50Hz
Fan Size 135mm Two-Ball Bearing Fan
Dimension 165mm(L) x 150mm(W) x 86mm(H)
Protection OVP / OCP / OPP / SCP / UVP / OTP / LVP
Safety cTÜVus / TÜV / CB / CE / RCM / RoHS / KCC
Temperature Passed 50℃ Hot Testing
Cable Spec

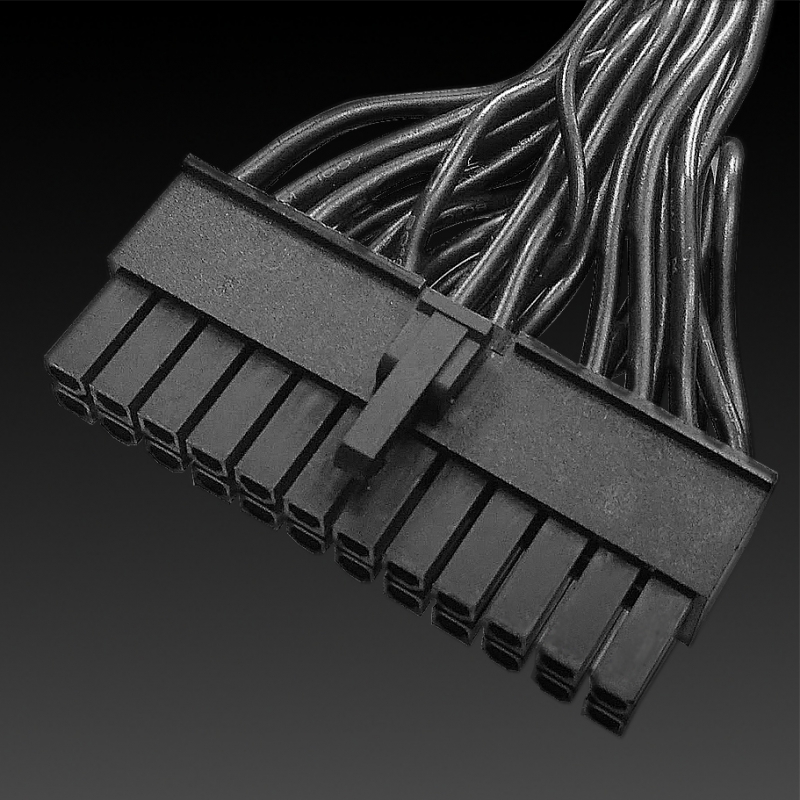

20+4Pin Detachable Cables one cable (600mm)
(4+4Pin) CPU one cable (700mm)
8Pin CPU one cable (700mm)

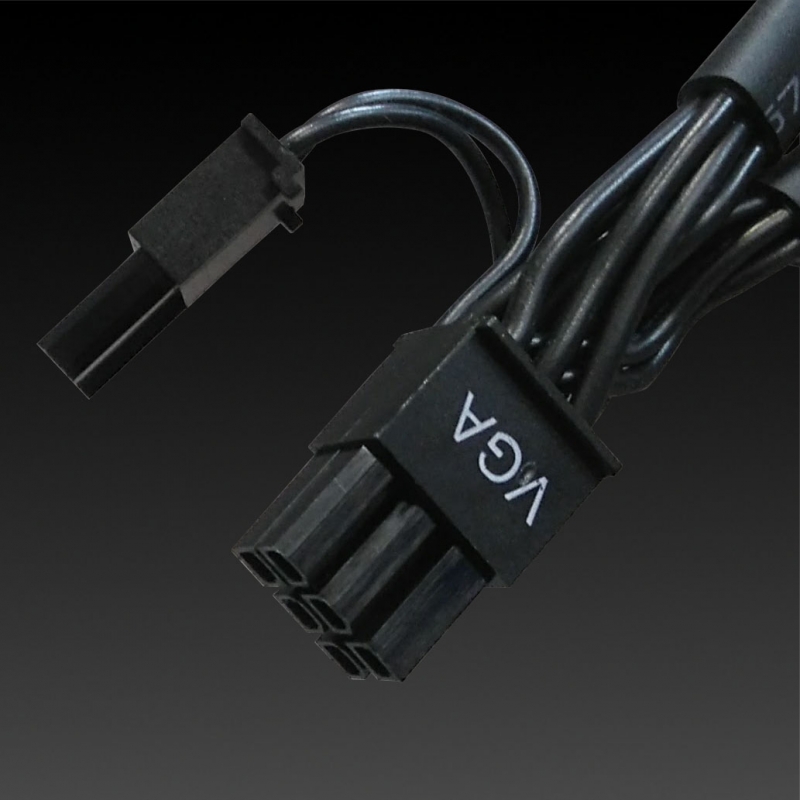

PCI-E 6+2Pin two cables (600mm)
SLI (2 x PCI 6+2Pin) two cables (600mm+150mm)

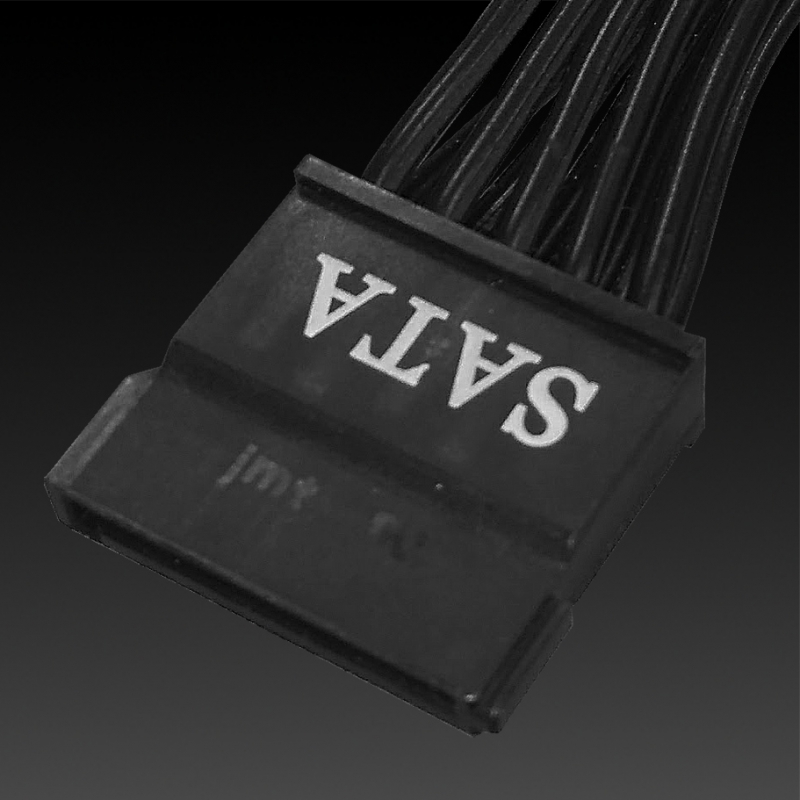

3SATA four cables (550mm+100mm+100mm)

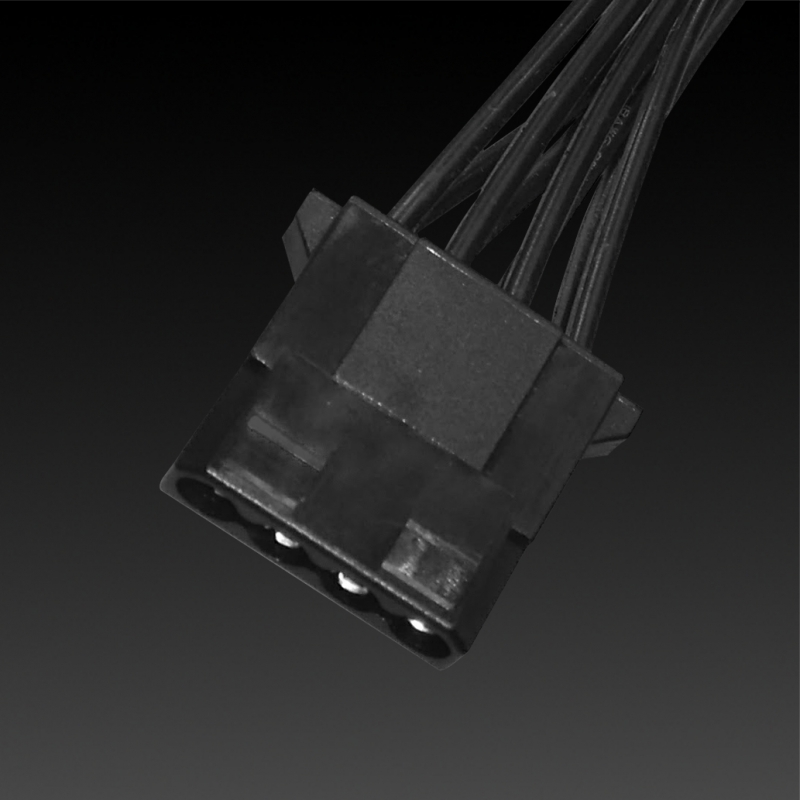

4Molex one cable (550mm+100mm+100mm+100mm)

Overview

model no.: SF-1000F14EG
200V~240V:
1000W		 AC INPUT 200Vac~240Vac 15A 60Hz/50Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
Max output Current 24A 24A 83.3A 0.5A 3.0A
Max combined Wattage 120W 999.6W 6W 15W
1000W
SF-850F14MG
100V~240V:
850W		 AC INPUT 100Vac~240Vac 10A 60Hz/50Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
Max output Current 24A 24A 70.8A 0.5A 3.0A
Max combined Wattage 120W 849.6W 6W 15W
850W

Downloads

Reviews & Awards

  • 80 PLUS certification information, please refer to the below link : SF-1000F14EG
