Power Supply - Phased out / Silver Green 500W

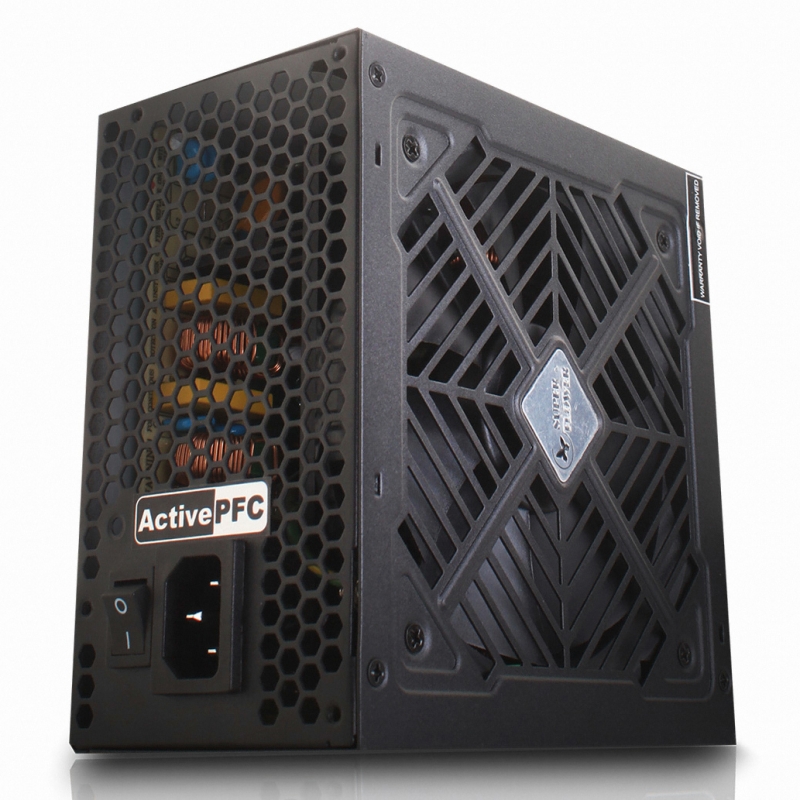

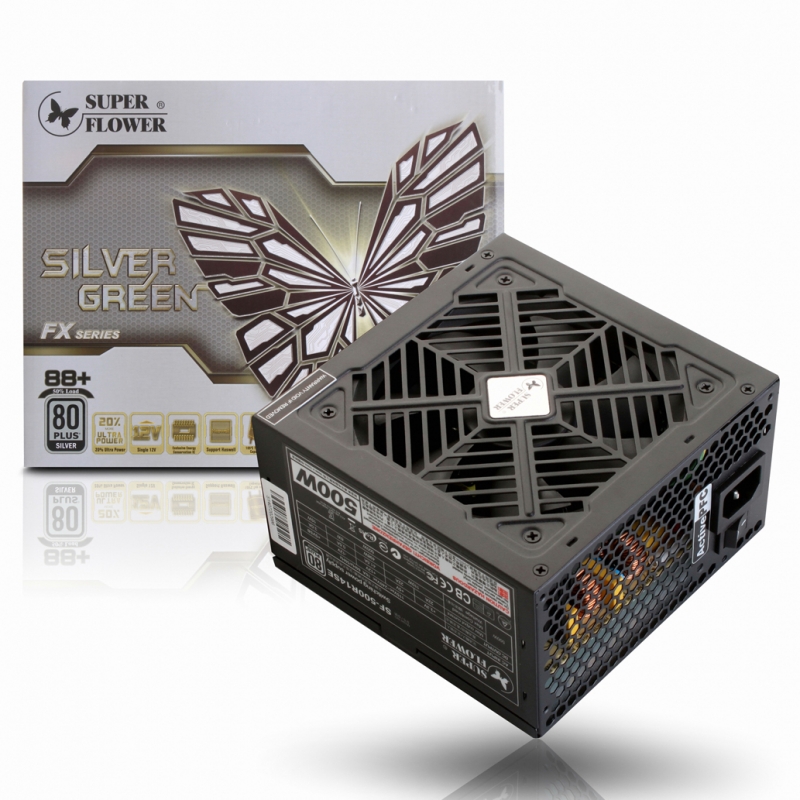

Silver Green 500W
Products Name : Silver Green 500W
Silver Green 500W Silver Green 500W Silver Green 500W Silver Green 500W

Features

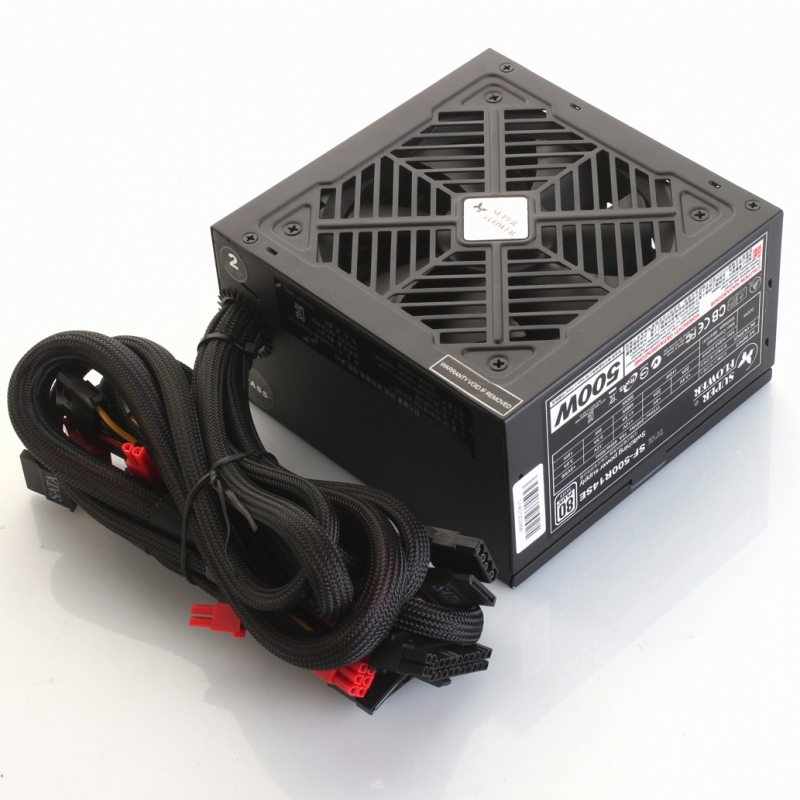

Silver Green FX series PSU are 80+ 115V internal silver certified with fixed cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
Silver Green FX series PSU provides high efficiency & stable power output and come with a 12cm thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦80 PLUS ® 115V Internal Silver Certified, 85% 88% 85% Efficiency At 20% 50% 100% Rated Load
♦Full Range Auto Voltage Detection Design from 100V ~ 250V. (Active PFC)
♦Comply With ATX 12V v2.32, EPS 12V v2.92 Specification.
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦Over Voltage Protection / Over Power Protection / Short Circuit Protection / Under Power Protection
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦Fourth-Generation Intel® Haswell™ CPU Compatible.
♦More than 2,000 times On/Off test
♦Unleaded Green Materials with RoHS/WEEE Compliance
♦Exclusive Patent (Taiwan & China Patents Approved. USA, Germany & Japan Patents Pending)
Dual Voltage Circuit with Intelligence Thermal Control System (Taiwan Patent No:M381102 )

Specification

Model No. SF-500R14SE
Wattage 500W
80+ Efficiency 20%: 85% ; 50% : 88% ; 100% : 85% (115V Internal Silver)
Intel Power Design Guide V2.92
AC Input | Frequency 115V~240V | 50 / 60HZ
Fan Size 120mm Long Life Silent Fan
Dimension 145mm(L) x 150mm(W) x 86mm(H)
Protection OVP、OPP、SCP、OTP、UPP
Safety cTÜVus / TÜV / CB / CE / FCC / C-Tick / BSMI / KCC / RoHS
Temperature Passed 50℃ Hot Testing
Cable Spec
20+4Pin Fixed Cables one cable
(4+4Pin) CPU one cable
SLI (2 x PCI 6+2Pin) one cable
2SATA+2Molex one cable
2SATA+1Molex one cable

Overview

model no.: SF-500R14SE
AC INPUT 115Vac~240Vac 10A  60Hz/50Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
500W Max output Current 22A 22A 41.5A 0.5A 3.0A
Max Combined Wattage 110W 498W 6W 15W
500W


Downloads

Reviews & Awards

  • 80 PLUS certification information, please refer to the below link : SF-500R14SE
