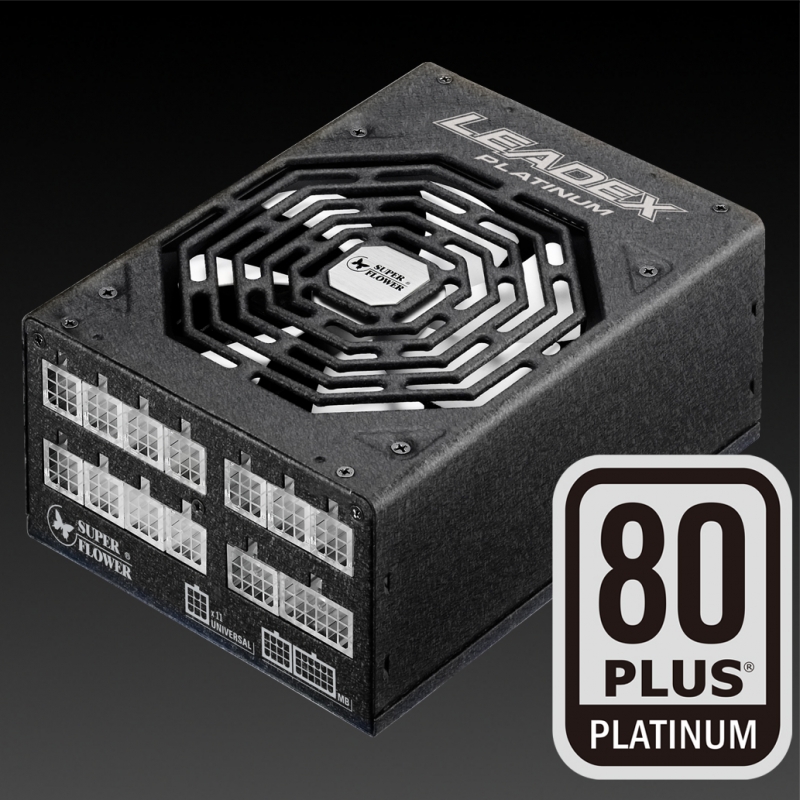

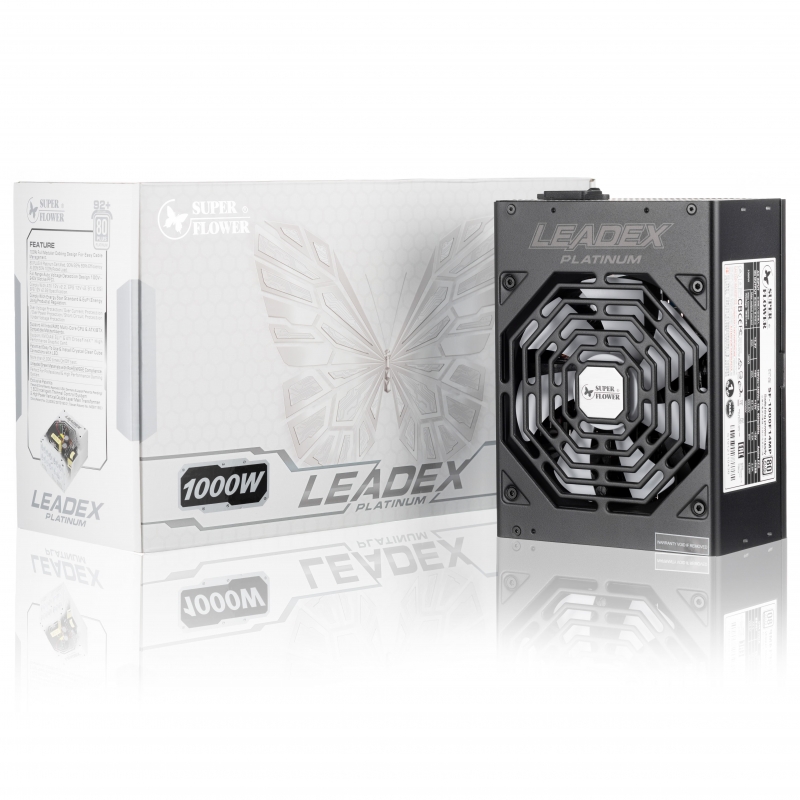

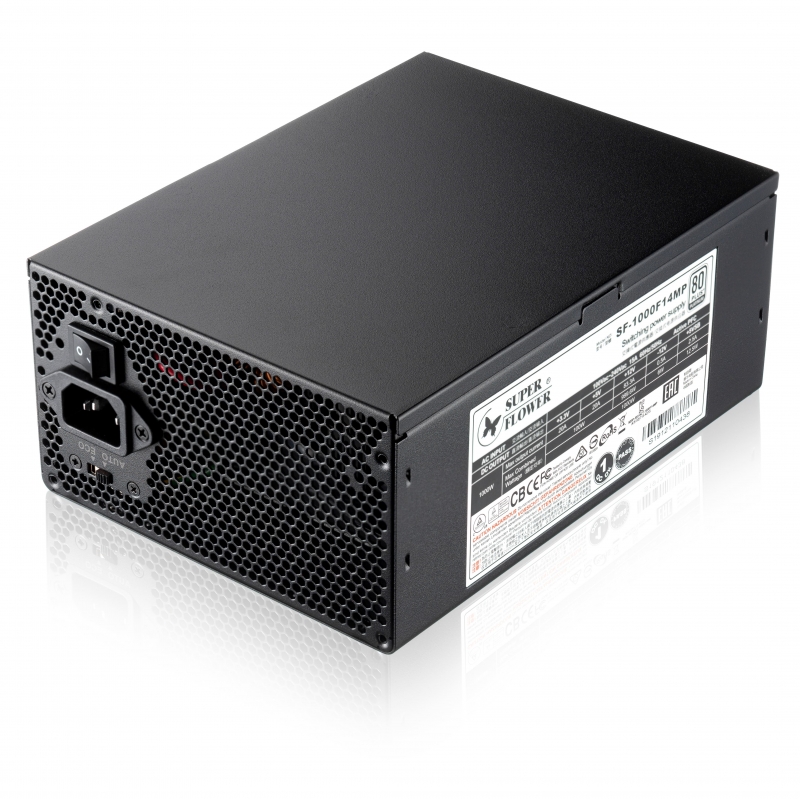

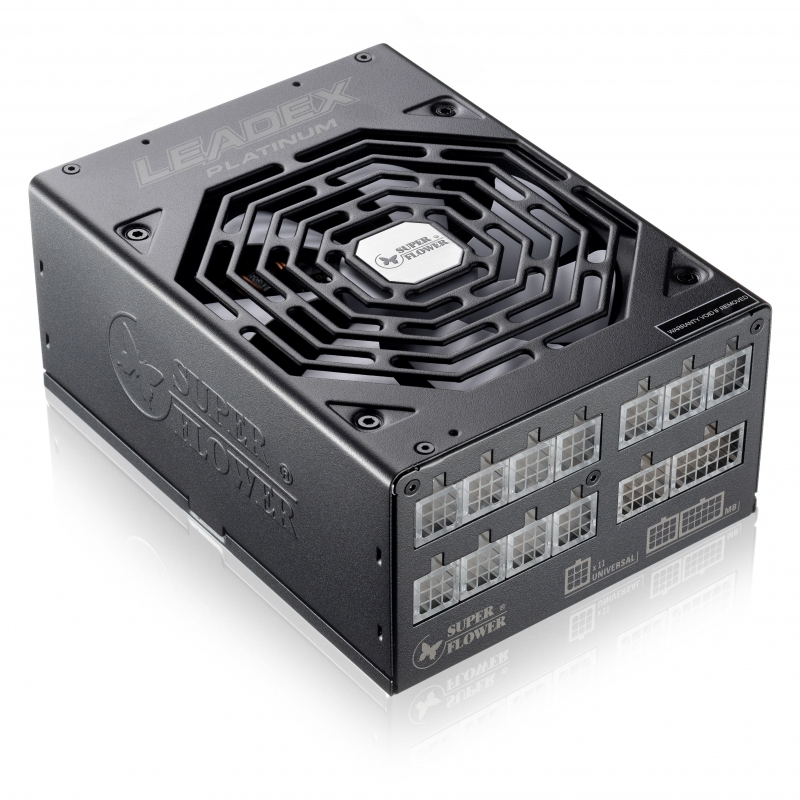

Products Name : LEADEX PLATINUM 1000W
Features
LEADEX Platinum series PSU are 80+ Platinum certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

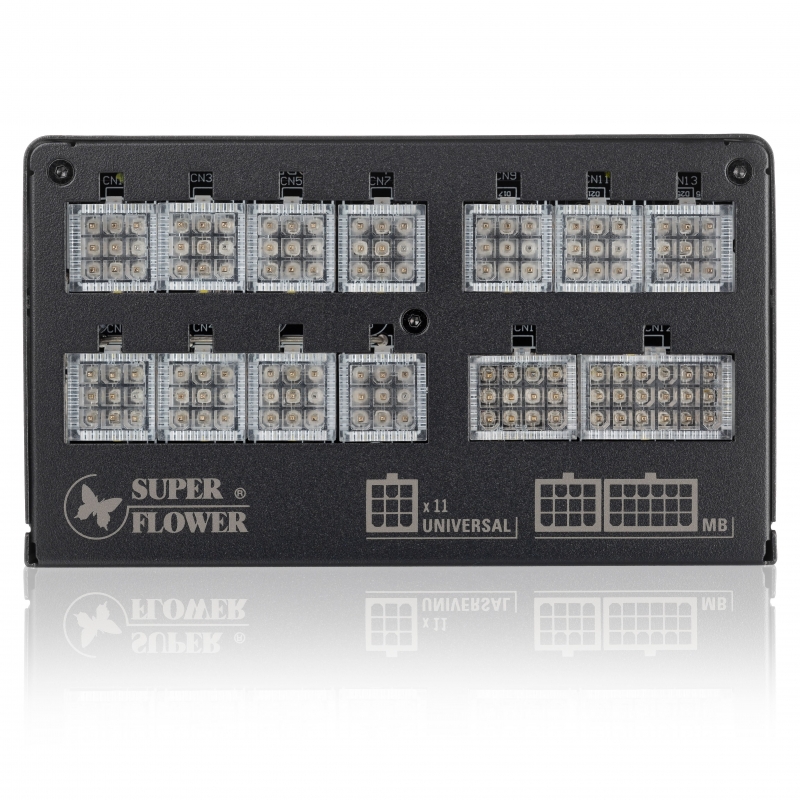

♦100% Full Modular Cabling Design For Easy Cable Management.
♦80 PLUS® Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
♦Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
♦Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification.
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / No Load Operation / Surge & Inrush Protection.
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦Patented Easy To Use & Install Crystal Clear Cube Connectors with LED.
♦More than 2,000 times On/Off test.
♦Unleaded Green Materials with RoHS/WEEE Compliance.
♦Perfect For Professional & High Performance Gaming System.
♦Exclusive Patents(Taiwan & China Patents Approved, USA,Germany & Japan Patent Pending)
1.ECO Intelligent Thermal Control System.(Taiwan Application NO. 099142513；China Application NO. 201010622621.5 U.S.A,Germany,Japan Patent Pending)
2.High Power Vertical Double Layer Main Transformer (China Patent No.: ZL2009 2 0273193.2；Taiwan Patent No.: M381155；U.S.A,Germany,Japan Patent Pending)
♦80 PLUS® Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
♦Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
♦Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification.
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / No Load Operation / Surge & Inrush Protection.
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦Patented Easy To Use & Install Crystal Clear Cube Connectors with LED.
♦More than 2,000 times On/Off test.
♦Unleaded Green Materials with RoHS/WEEE Compliance.
♦Perfect For Professional & High Performance Gaming System.
♦Exclusive Patents(Taiwan & China Patents Approved, USA,Germany & Japan Patent Pending)
1.ECO Intelligent Thermal Control System.(Taiwan Application NO. 099142513；China Application NO. 201010622621.5 U.S.A,Germany,Japan Patent Pending)
2.High Power Vertical Double Layer Main Transformer (China Patent No.: ZL2009 2 0273193.2；Taiwan Patent No.: M381155；U.S.A,Germany,Japan Patent Pending)
♦This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system:
- Industrial grade server system.
- Special ultra-high load operation system (for example: bitcoin mining machine... etc.)
- Test equipment system (for example: memory RAM, VGA graphic card or USB device test)
Specification
| Model No. | SF-1000F14MP | |
| Wattage | 1000W | |
| 80+ Efficiency | 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) | |
| Intel Power Design Guide | V2.92 | |
| AC Input | Frequency | 100-240V | 60 / 50HZ | |
| Fan Size | 140mm Two-Ball Bearing Fan | |
| Dimension | 200mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OVP / OCP / OPP / SCP / UVP / OTP / LVP / NLO / SIP | |
| Safety | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS / KCC /CCC | |
| Temprature | Passed 50℃ Hot Testing | |
| Cable Spec | ||
| 20+4Pin | Detachable Cables | one cable (600mm) |
| (4+4Pin) CPU | one cable (700mm) | |
| 8Pin CPU | one cable (700mm) | |
| PCI-E 6+2Pin | four cables (600mm) | |
| SLI (PCI 6+2 & 6 Pin) | one cable (600+130mm) | |
| 4SATA | two cables (550+130+130+130mm) | |
| 2SATA+2Molex | one cable (550+130+130+130mm) | |
| 3Molex + 1FDD | one cable (550+130+130+130mm) | |
Overview

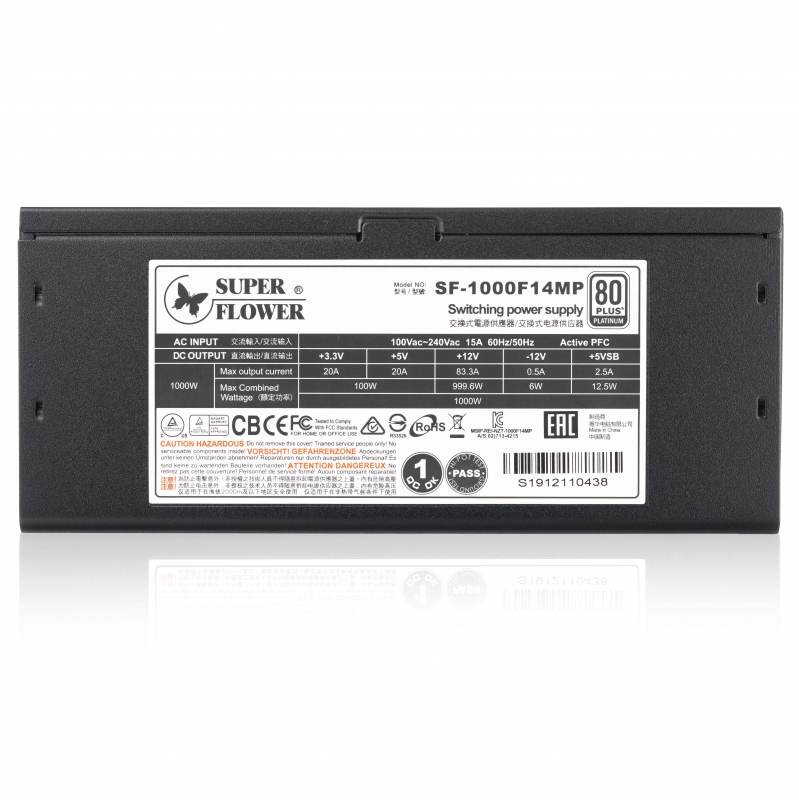

| Model no.: SF-1000F14MP | ||||||
| AC INPUT | 100-240Vac 15A 60Hz/50Hz | |||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| 1000W | Max output Current | 20A | 20A | 83.3A | 0.5A | 2.5A |
| Max combined Wattage | 100W | 999.6W | 6W | 12.5W | ||
| 1000W | ||||||
Reviews & Awards
- 80 PLUS certification information, please refer to the below link : SF-1000F14MP
