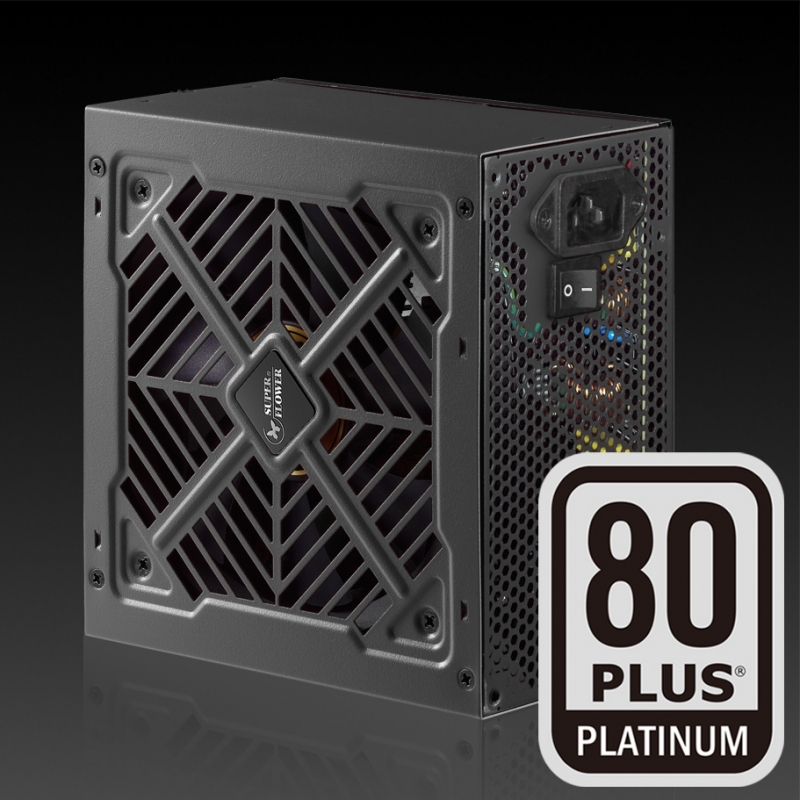

Products Name : Platinum King 550W
Features
Platinum King series PSU are 80+ Platinum certified with fixed cable design, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
Platinum King series PSU provides high efficiency & stable power output and come with a 12cm cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
Platinum King series PSU provides high efficiency & stable power output and come with a 12cm cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦80 PLUS® 115V Internal Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load
♦Fourth-Generation Intel® Haswell™ CPU Compatible.
♦Full Range Auto Voltage Detection Design from 100V ~ 240V (Active PFC).
♦Comply With ATX 12V v2.32, EPS 12V v2.92 Specification.
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦Over Power Protection / Under Voltage Protection / Over Voltage Protection / Short Circuit Protection / Over Current Protection.
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦More than 2,000 times On/Off test.
♦Unleaded Green Materials with RoHS/WEEE Compliance.
♦Perfect For Professional & High Performance Gaming System.
♦DC to DC Converter & High Quality Solid Capacitors.
♦JAPANESE Capacitor.
♦German well-known Brand “infineon ”Low Rds (on) Cool Mos.
♦Exclusive Patent (Taiwan & China Patents Approved. USA, Germany & Japan Patents Pending)
1.Multi Patenet Pending Extreme High Efficiency Main Transformer (Taiwan Invention Patent no: 103127942 ; Taiwan Utility Model Patent no: 103214502 ; China Invention Patent no: 201410414373.3 ; China Utility Model Patent no: 201420474128.7 (Patent Pending) ; Germany, United Kingdom, USA, Korea, Japan Patent Applied)
2.Dual Voltage Circuit with Intelligence Thermal Control System (Taiwan Patent No:M381102)
♦Fourth-Generation Intel® Haswell™ CPU Compatible.
♦Full Range Auto Voltage Detection Design from 100V ~ 240V (Active PFC).
♦Comply With ATX 12V v2.32, EPS 12V v2.92 Specification.
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦Over Power Protection / Under Voltage Protection / Over Voltage Protection / Short Circuit Protection / Over Current Protection.
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦More than 2,000 times On/Off test.
♦Unleaded Green Materials with RoHS/WEEE Compliance.
♦Perfect For Professional & High Performance Gaming System.
♦DC to DC Converter & High Quality Solid Capacitors.
♦JAPANESE Capacitor.
♦German well-known Brand “infineon ”Low Rds (on) Cool Mos.
♦Exclusive Patent (Taiwan & China Patents Approved. USA, Germany & Japan Patents Pending)
1.Multi Patenet Pending Extreme High Efficiency Main Transformer (Taiwan Invention Patent no: 103127942 ; Taiwan Utility Model Patent no: 103214502 ; China Invention Patent no: 201410414373.3 ; China Utility Model Patent no: 201420474128.7 (Patent Pending) ; Germany, United Kingdom, USA, Korea, Japan Patent Applied)
2.Dual Voltage Circuit with Intelligence Thermal Control System (Taiwan Patent No:M381102)
Specification
| Model No. | SF-550P14PE | |
| Wattage | 550W | |
| Efficiency | 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) | |
| Intel Power Design Guide | V2.92 | |
| AC Input | Frequency | 100V~240V | 60 / 50Hz | |
| Fan Size | 120mm Long Life Silent Fan | |
| Dimension | 145mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OVP / OPP / SCP / UVP / OCP | |
| Safety | cTÜVus / TÜV / CB / CE / FCC / RoHS / KCC / EAC | |
| Temperature | Passed 50℃ Hot Testing | |
| Cable Spec | ||
| 20+4Pin | Fixed Cables | one cable |
| (4+4Pin) CPU | one cable | |
| PCI 6+2Pin | one cable | |
| SLI (2 x PCI 6+2Pin) | one cable | |
| 3SATA + 1Molex | one cable | |
| 2SATA+ 2Molex | one cable | |
Overview
| model no.: SF-550P14PE | ||||||
| AC INPUT | 115-240Vac 10A 60Hz/50Hz | |||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| 550W | Max output Current | 20A | 20A | 45.5A | 0.5A | 2.5A |
| Max combined Wattage | 100W | 546W | 6W | 12.5W | ||
| 550W | ||||||
Downloads
Reviews & Awards
- 80 PLUS certification information, please refer to the below link: SF-550P14PE
