Products Name : LEADEX III Gold ARGB 850W
Features
LEADEX III ARGB series, which are based on LEADEX III platform, features RGB lighting. The Led RGB light possesses 16 light modes such as, Rainbow mode, Breathing mode, Blink mode, and single color mode etc..which can be controlled manually through the button.
The RGB PSU could also be controlled through the motherboard from ASUS, Gigabyte or MSI with a 5V RGB header. LEADEX III ARGB series PSU provides high efficiency & stable power output and come with a 13cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
The RGB PSU could also be controlled through the motherboard from ASUS, Gigabyte or MSI with a 5V RGB header. LEADEX III ARGB series PSU provides high efficiency & stable power output and come with a 13cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦ The RGB lighting effects can be SYNC through the M/B which supports ARGB function, including ASUS AURA/MSI Mystic Light/Gigabyte Fusion/Asrock Polychrome series..png)
♦ Software controlled through 5V connector, LEADEX III ARGB series provide more colorful mode options

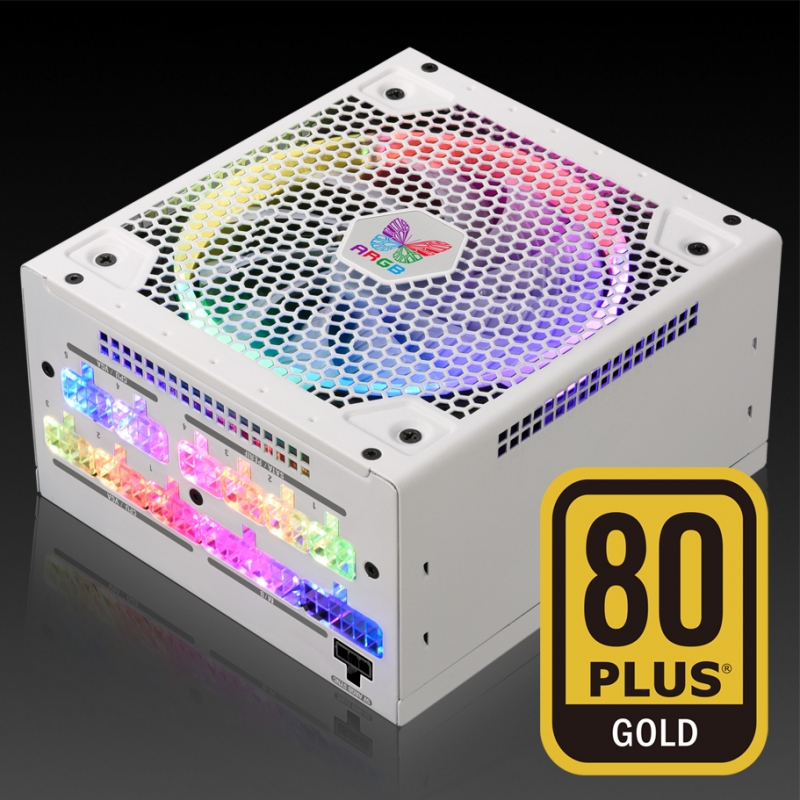

♦ The only ARGB crystal lighting back panel in the world.
♦ Highly efficient 5VSB rail
♦ Excellent ripple suppression
♦ Class leading Single +12V powerful output

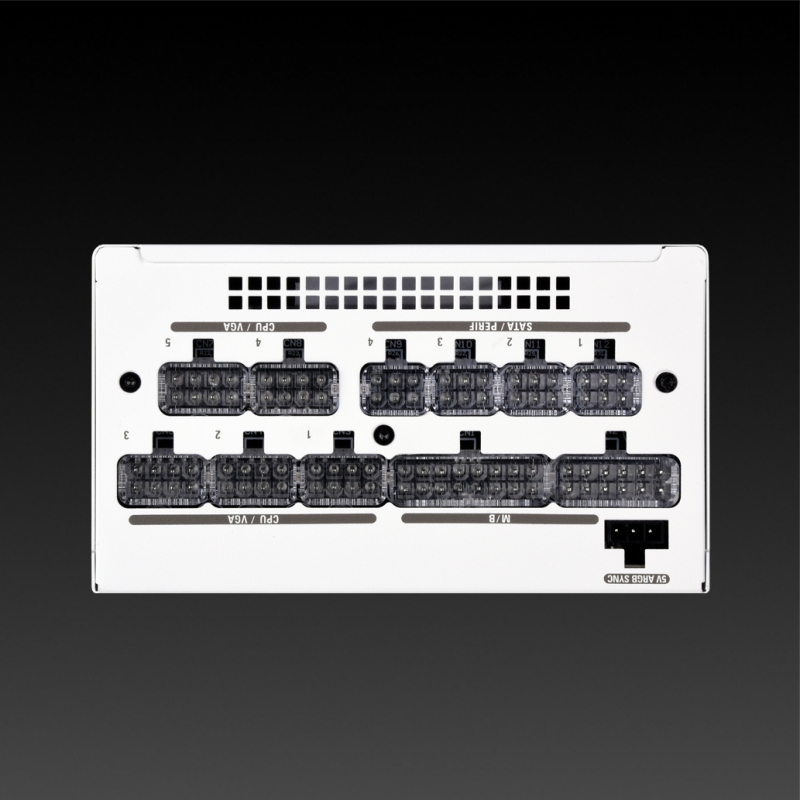

♦ Fully modular design
♦ The only ARGB crystal lighting back panel in the world.
♦ Highly efficient 5VSB rail
♦ Excellent ripple suppression
♦ Class leading Single +12V powerful output
♦ Fully modular design
- Offering flexible options for cable management
- Increasing PSU efficiency with decreasing voltage consumption
- Patented icable connector design with graceful outlook and safety

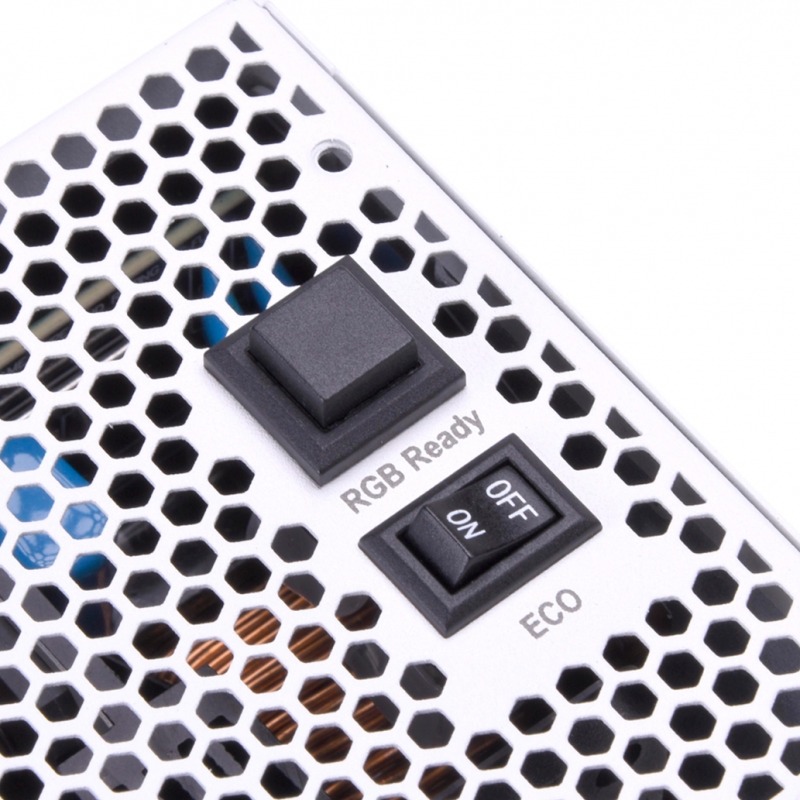

♦ 16 optional button control lighting modes
♦ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards(Haswell ready)
♦ Compatible with Intel's 11, 12th Generation
♦ Comply With ATX 12V. v2.32 & EPS 12V. v2.92 Specification
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ 80PLUS Gold certified
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦ Multi-Patented techniques
1. ECO thermal fan control system: Semi-Passive mode
2. 130mm FDB fan
- Unique 11blades design ensure high airflow and more stable cooling system
- Patented Circle Led lighting offers more smooth lighting
3. Patented icable connector design with graceful outlook and safety
4. Patented Lighting Design: Self-detect ARGB SYNC or Manual Mode options
5. 3.3V/5V/12V output stable design
6. New patented technology of (20+4) Pin connector
7. Dual Over Power Protection ensure more complete protection and ultimate safety for end-users
8. Multi-Patent Pending Extreme High Efficiency Main Transformer
♦ Solid capacitors using on DC output for stable reliability
♦ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel) ensure high stability and life span.
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
♦ More than 2,000 times On/Off test
♦ Lead-free Green Materials with RoHS / WEEE Compliance
♦ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards(Haswell ready)
♦ Compatible with Intel's 11, 12th Generation
♦ Comply With ATX 12V. v2.32 & EPS 12V. v2.92 Specification
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ 80PLUS Gold certified
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦ Multi-Patented techniques
1. ECO thermal fan control system: Semi-Passive mode
2. 130mm FDB fan
- Unique 11blades design ensure high airflow and more stable cooling system
- Patented Circle Led lighting offers more smooth lighting
3. Patented icable connector design with graceful outlook and safety
4. Patented Lighting Design: Self-detect ARGB SYNC or Manual Mode options
5. 3.3V/5V/12V output stable design
6. New patented technology of (20+4) Pin connector
7. Dual Over Power Protection ensure more complete protection and ultimate safety for end-users
8. Multi-Patent Pending Extreme High Efficiency Main Transformer
♦ Solid capacitors using on DC output for stable reliability
♦ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel) ensure high stability and life span.
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
♦ More than 2,000 times On/Off test
♦ Lead-free Green Materials with RoHS / WEEE Compliance
| SUPPORT +5V SYNC MODEL LIST | |||
| ASUS | GIGABYTE | MSI | ASROCK |
| Prime X299-Deluxe | X570 AORUS XTREME | B360 PRO CARBON | B450-M STEEL LEGEND |
| Prime X299-Deluxe-II | X570 AORUS MASTER | B360-GAMING-PRO-CARBON | Z390 EXTREME4 |
| Prime X570-P | X570 AORUS ULTRA | B450-GAMING-PRO-CARBON-AC | X570M Pro4 |
| Prime X570-Pro | X570 AORUS PRO WIFI | H370-GAMING-PRO-CARBON | X570 Phantom Gaming-ITX/TB3 |
| TUF GAMING X570-PLUS (WI-FI) | X570 AORUS PRO | MAG-B365M-MORTAR | X470 Taichi |
| Rampage VI Extreme | X570 AORUS ELITE WIFI | MAG-Z390-TOMAHAWK | X470 Master SLI/ac |
| ROG Crosshair VI Extreme | X570 AORUS ELITE | MEG-X299-CREATION | B450 Steel Legend |
| ROG Crosshair VII Hero | X570 GAMING X | MEG-X570-ACE | B450M Steel Legend |
| ROG Crosshair VII Hero (WIFI) | Z390 AORUS XTREME WATERFORCE | MEG-X570-GODLIKE | Fatal1ty B450 Gaming K4 |
| ROG Crosshair VIII Formula | Z390 AORUS XTREME | MEG-Z390-ACE | B450M Pro4 |
| ROG Crosshair VIII Hero | Z390 AORUS MASTER | MEG-Z390-GODLIKE | Z390 Taichi Ultimate |
| ROG Crosshair VIII Hero (Wi-Fi) | Z390 AORUS PRO WIFI | MPG Z390 GAMING EDGE AC | Z390 Taichi |
| ROG Maximus X Code | Z390 AORUS ULTRA | MPG Z390 GAMING PRO CARBON *1 | Z390 Extreme4 |
| ROG Maximus X Formula | Z390 AORUS PRO | MPG Z390 GAMING PRO CARBON AC *1 | Z390 Steel Legend |
| ROG Maximus X Hero | Z390 AORUS ELITE | MPG-X570-GAMING-EDGE-WIFI | Z390 Phantom Gaming 6 |
| ROG Maximus X Hero (Wi-Fi AC) | Z390 I AORUS PRO WIFI | MPG-X570-GAMING-PLUS | Z390 Phantom Gaming SLI |
| ROG Maximus XI Apex | X299 AORUS MASTER | MPG-X570-GAMING-PRO-CARBON-WIFI | Z390 Phantom Gaming-ITX/ac |
| ROG Maximus XI Code | X299 DESIGNARE EX | MPG-Z390-GAMING-EDGE-AC | B365 Phantom Gaming 4 |
| ROG Maximus XI Extreme | X299 AORUS Gaming 7 Pro | MPG-Z390M-GAMING-EDGE-AC | B365M Phantom Gaming 4 |
| ROG Maximus XI Formula | X299 AORUS Ultra Gaming Pro | PRESTIGE-X570-CREATION | Fatal1ty B360M Performance |
| ROG MAXIMUS XI GENE | X299 AORUS Ultra Gaming | X570 GAMING EDGE WIFI | X399 Phantom Gaming 6 |
| ROG Maximus XI Hero | X299 AORUS Gaming 3 Pro | X570 GAMING PRO CARBON WIFI | Z390 Phantom Gaming X *2 |
| ROG Maximus XI Hero (WI-FI) | X299 UD4 EX | Z370I-GAMING-PRO-CARBON-AC *1 | Z390 Phantom Gaming 7 *2 |
| ROG Rampage VI Extreme Omega | X299 UD4 Pro | Z270 *2 | X570 Phantom Gaming X *2 |
| ROG Strix B350-I Gaming | X299 UD4 | Z370 *2 | X570 TAICHI *2 |
| ROG STRIX B360-F GAMING | X299 AORUS Gaming | X399 *2 | X570 Steel Legend *2 |
| ROG Strix B360-I Gaming | H370 AORUS GAMING 3 WIFI | X370 *2 | X570 Extreme4 *2 |
| ROG Strix B450-E Gaming | H370 AORUS GAMING 3 | X470 *2 | |
| ROG Strix B450-I Gaming | H370N WIFI | MPG Z390 GAMING PRO CARBON AC *2 | |
| ROG Strix H370-I Gaming | B360 AORUS GAMING 3 WIFI | MPG Z390 GAMING PRO CARBON *2 | |
| ROG Strix X299-E Gaming | B360 AORUS GAMING 3 | ||
| ROG Strix X299-XE Gaming | B360 HD3P | ||
| ROG Strix X370-I Gaming | B360 M AORUS PRO | ||
| ROG Strix X399-E Gaming | B360M AORUS GAMING 3 | ||
| ROG Strix X470-F Gaming | B360N AORUS GAMING WIFI | ||
| ROG Strix X470-I Gaming | Z370 AORUS Gaming 7 | ||
| ROG Strix X570-E Gaming | Z370 AORUS Gaming 5 | ||
| ROG Strix X570-F Gaming | Z370 AORUS ULTRA GAMING WIFI-OP | ||
| ROG Strix Z370-E Gaming | Z370 AORUS ULTRA GAMING 2.0 | ||
| ROG Strix Z370-F Gaming | Z370 AORUS Ultra Gaming | ||
| ROG STRIX Z370-G GAMING | Z370 AORUS Gaming 3 | ||
| ROG Strix Z370-I Gaming | Z370 AORUS Gaming K3 | ||
| ROG Strix Z390-E Gaming | Z370 AORUS GAMING WIFI | ||
| ROG Strix Z390-F Gaming | Z370 UD3H | ||
| ROG Strix Z390-I Gaming | Z370N WIFI | ||
| ROG Zenith Extreme | X399 AORUS XTREME | ||
| ROG Zenith Extreme Alpha | X399 DESIGNARE EX | ||
| TUF GAMING X570-PLUS | X399 AORUS Gaming 7 | ||
| X399 AORUS PRO | |||
| X470 AORUS GAMING 7 WIFI | |||
| X470 AORUS GAMING 5 WIFI | |||
| X470 AORUS ULTRA GAMING | |||
| B450 AORUS PRO WIFI | |||
| B450 AORUS PRO | |||
| B450 AORUS ELITE | |||
| B450 AORUS M | |||
| B450 I AORUS PRO WIFI | |||
| *1:Please apply adapter to JCORSAIR socket in order to SYNC with the M/B. May contact local M/B vendor for the adapter. | |||
| *2:Serial number above 1909108801 are compatible. | |||
| 3:Serial number above 1909108801 are fully compatible with motherboards featuring 5V Addressable RGB header (3 pin assignment) that are launched after 2020.Please visit ASUS, GIGABYTE, MSI, AsRock official website for model series & model name details. | |||
| Version:2020/03/08 | |||

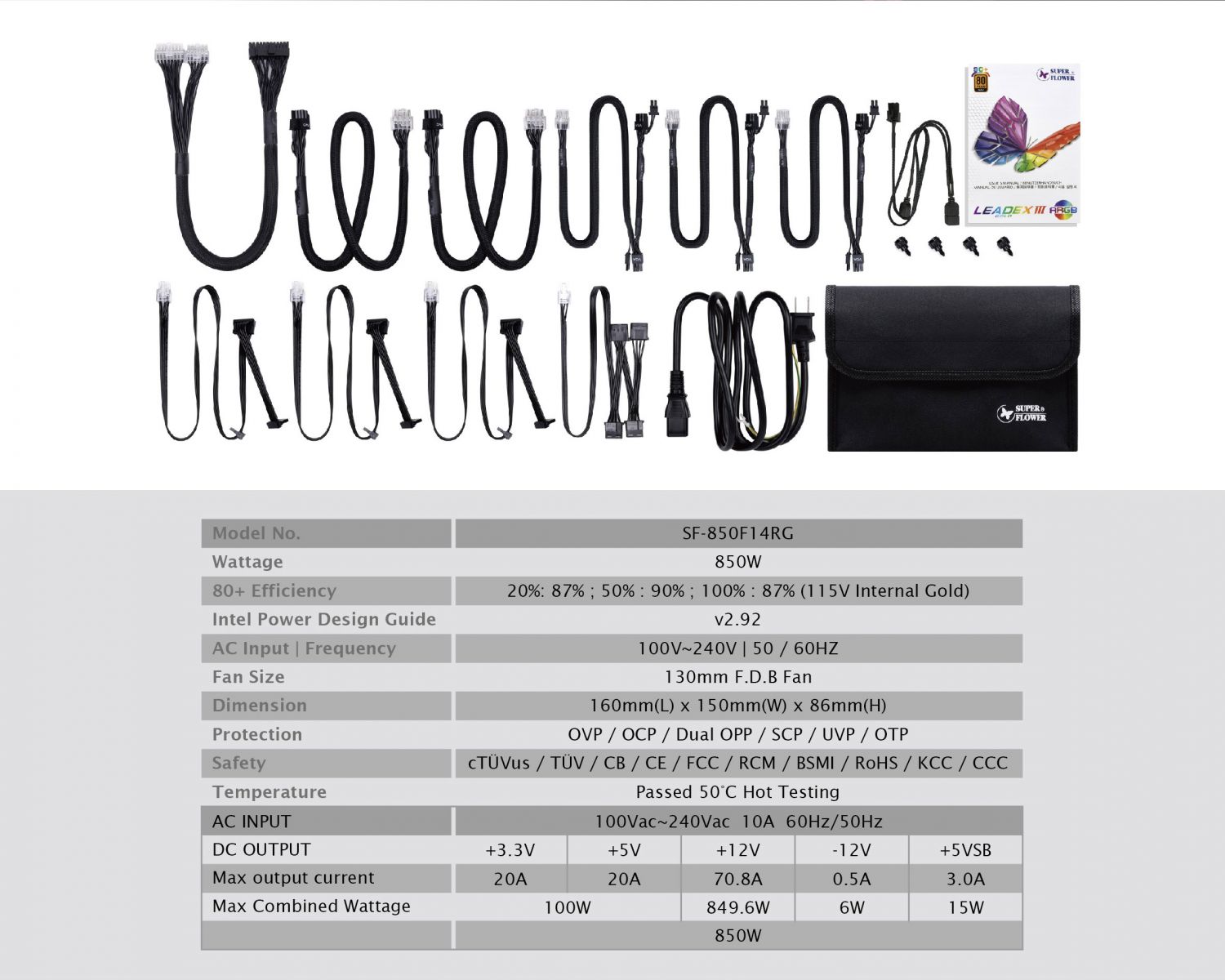

Specification

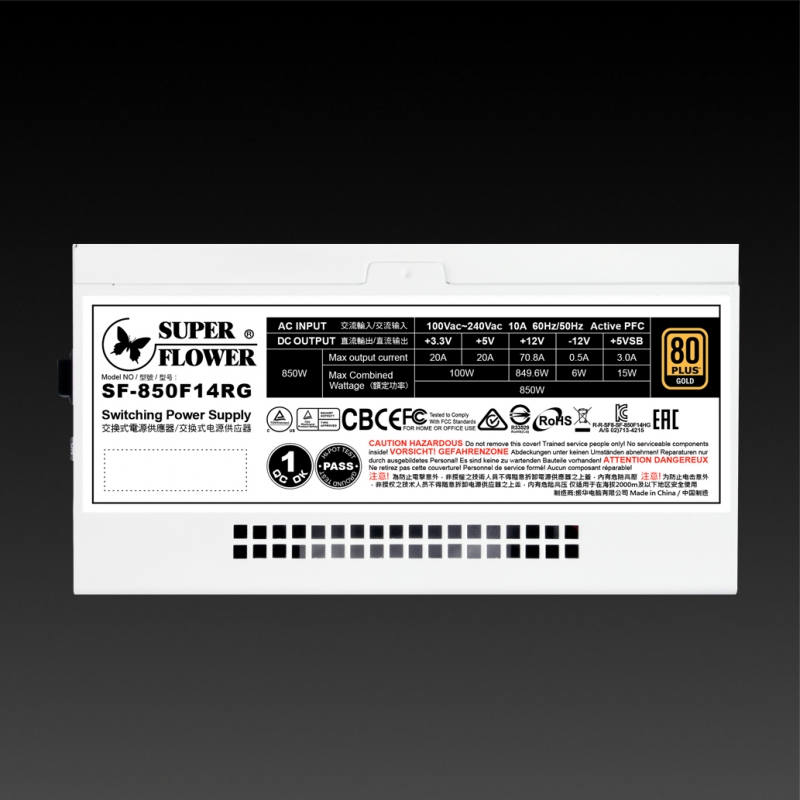

| Model No. | SF-850F14RG | |
| Wattage | 850W | |
| 80+ Efficiency | 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) | |
| Intel Power Design Guide | V2.92 | |
| AC Input / Frequency | 100V~240V | 60 / 50Hz | |

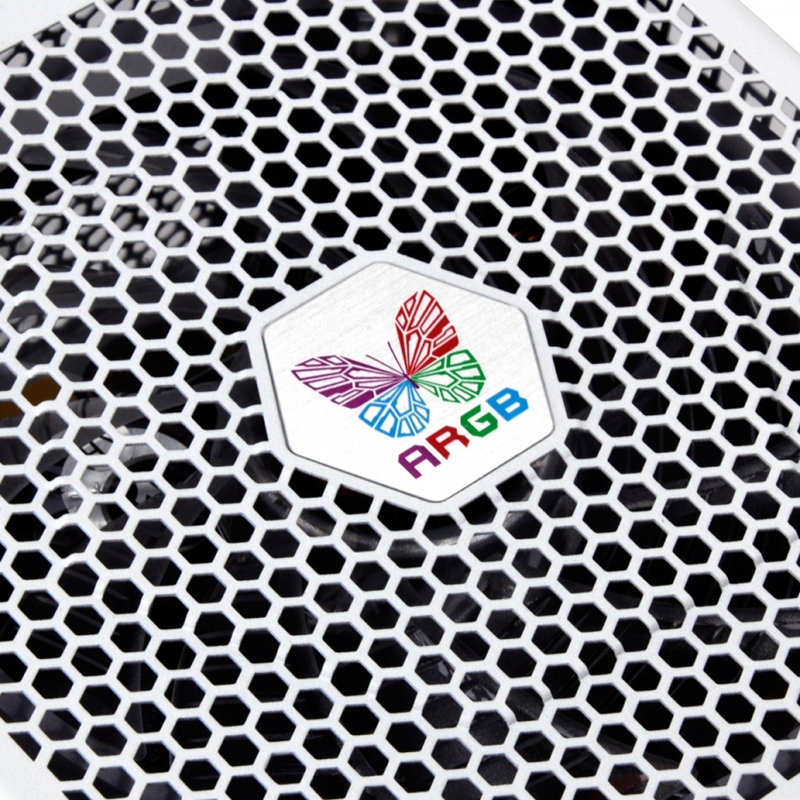

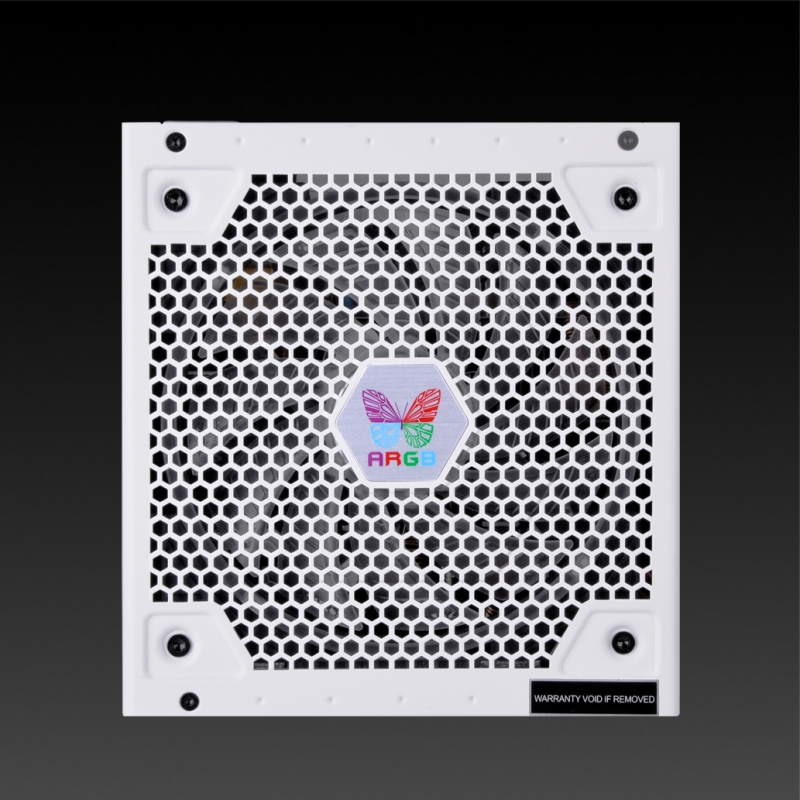

| Fan Size | 130mm F.D.B Fan (ARGB) | |
| Dimension | 160mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OVP / OCP / Dual OPP / SCP / UVP / OTP / NLO / SIP | |
| Safety | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS/ KCC /CCC | |
| Temperature | Passed 50℃ Hot Testing | |
| Cable Spec | ||
| 20+4 Pin | Full Modular | 1 (600mm) |
| 8 (4+4) Pin CPU | 2 (700mm) | |
| SLI (2 x PCI 6+2 Pin) | 3 (550+150mm) | |
| 3SATA | 3 (550+120+120mm) | |
| 4Molex | 1 (550+100+100+100mm) | |
